Shenzhen Zoomtake Automation Co., Ltd.
Booth No.:
Company Profile
Established in 2008, Shenzhen Zoomtake Automation Technology Co., Ltd. is a technology-oriented high-tech enterprise. Its aim is to provide conceptual design, precision machining and assembly services for advanced technology products and production automation.
The company has a group of professional and technical personnel who have been engaged in the design, manufacture and software development of precision automation equipment and tooling fixtures for many years. The core backbone personnel have a master’s degree or above or the title of senior engineer, specializing in precision machinery, electronics, software, automation control, image processing and many other fields, which form the core competence of the company as follows:
Precision motion control and non-contact image detection technology
Precision automation equipment development and system integration
Flexible customization design and fast customer service
Deep understanding of FPC bonding technology and AVL inspection technology
Website: click
Products

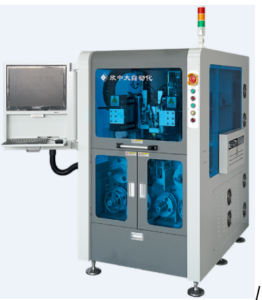

SMT on line PSA bonding machine （Model：OPB3000 ）
|
Apply FPC size |
50x100~ 250x400 mm |
|
Apply adhesive paper type |
PSA, 3M adhesive paper、High/low temperature adhesive paper |
|
Apply adhesive paper size |
X:(1.4~80mm)，Y:(1.4~50mm)；T:0.025-1mm |
|
Cycle time |
CT<0.6s/ pc |
|
Bonging accuracy |
±0.1mm |
|
Preventive re-bonding function |
Yes, it can completely prevent re-bonding |
|
Automatic bonding recognition function |
Yes, it is completely leak bonding |
|
Overall dimension |
1000(L)x1350(W)x1550(H)mm |

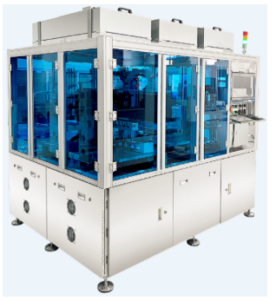

Automatic flexible material bonding machine（Model: CPM5563）
|
Max. FPC size |
550x630mm |
|
Apply stiffener |
SUS,EMI CVL,PSA,PI, FR4, |
| Apply stiffener shape |
Any shape with holes or slots. |
|
Apply stiffener size (W x D x T) |
W:1.4~150mm
D:1.4~130mm T:0.025-2mm |
| Cycle time |
0.7~1 sec./pc (Depends on the size and pcs quantity of flexible materials) |
|
Bonding precision |
SUS：±0.05mm; |
|
EM/ CVL/PSAPI：±0.1mm |
|
| Overall dimension |
2150(L)x2050(W)x1762(H)mm |

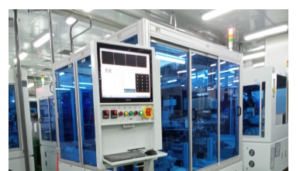

CVL bonding machine (FPC PNL / CVL Roll & PNL) Model: PRM5060
|
FPC |
Apply FPC size (WxD ) |
Min.260 × 100 mm ~ Max. 510 × 620 mm |
| CVL&EMI |
Apply CVL size |
Min. 260 × 80mm~ Max. 260 × 500mm |
|
Window opening area |
Apply CVL window opening area ≤60% |
|
|
Cycle time |
8~12s/ sheet (Depending on the size of CVL ) |
|
| Bonding precision |
<± 0.1mm (FPC&CVL's contraction is less than 0.1%) |
|
| Camera recognition accuracy |
0.01mm |
|
| Overall dimension |
2900(W)x2100(D)x2100(H)mm(including FFU height) |
|
